디스크 밀 DM 200

디스크 밀 DM 200

이 페이지에서 무료 견적을 요청할 수 있습니다.

요청 리스트에 포함하시고자 하는 아이템을 선택하여 주시기 바랍니다. 제품 페이지에서 항목을 선택할 수 있습니다.

요청 리스트는 웹사이트 우측 상단 코너에서 확인하실 수 있습니다.

일반 견적

필요한 제품이 무엇인지 잘 모르거나 일반 견적이 필요하십니까?

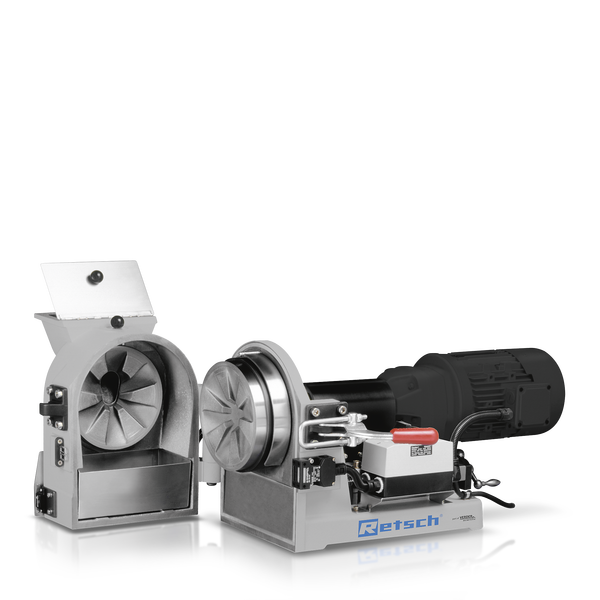

Disc Mill DM 200

Disc Mill DM 200 complete with grinding discs

선택 안내
선택 안내
A set of grinding discs consists of a fixed and a rotating grinding disc. For efficient and contamination-free grinding processes, the grinding discs are available in 4 different materials (no undesired abrasion):

The hardened steel grinding disc is used for standard applications (samples with a Mohs hardness of 3 – 6).

The manganese steel grinding disc is used for standard applications (samples with a Mohs hardness of 3 – 6). As manganese steel is compacted under pressure, the material becomes harder over time. Moreover, it contains less chrome than hardened steel.

The tungsten carbide grinding disc is recommended for grinding extremely hard samples with a Mohs hardness >6, like certain minerals.

The zirconium oxide grinding disc is used for heavy-metal-free size reduction processes or when the natural color of the sample needs to be preserved (e. g. for dental ceramics).

Please note: The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.
분쇄 디스크
20.740.0013
DM 2003 상~ 400 V, 50 Hz망간 스틸
20.740.0012
DM 2003 상~ 400 V, 50 Hz경화 강
20.740.0014
DM 2003 상~ 400 V, 50 Hz텅스텐 카바이드
20.740.0015
DM 2003 상~ 400 V, 50 Hz지르코늄 옥사이드
다른 전력 버전도 동일한 가격으로 제공

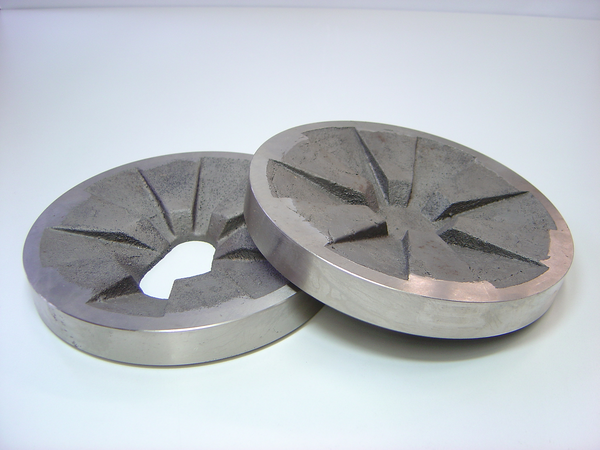

Grinding discs DM 200

선택 안내
선택 안내
A set of grinding discs consists of a fixed and a rotating grinding disc. For efficient and contamination-free grinding processes, the grinding discs are available in 4 different materials (no undesired abrasion):

The hardened steel grinding disc is used for standard applications (samples with a Mohs hardness of 3 – 6).

The manganese steel grinding disc is used for standard applications (samples with a Mohs hardness of 3 – 6). As manganese steel is compacted under pressure, the material becomes harder over time. Moreover, it contains less chrome than hardened steel.

The tungsten carbide grinding disc is recommended for grinding extremely hard samples with a Mohs hardness >6, like certain minerals.

The zirconium oxide grinding disc is used for heavy-metal-free size reduction processes or when the natural color of the sample needs to be preserved (e. g. for dental ceramics).

Please note: The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.
22.456.0002
분쇄 디스크망간 스틸1 세트
22.456.0001
분쇄 디스크경화 강1 세트
22.456.0003
분쇄 디스크텅스텐 카바이드1 세트
22.456.0004
분쇄 디스크지르코늄 옥사이드1 세트


Accessories DM 200

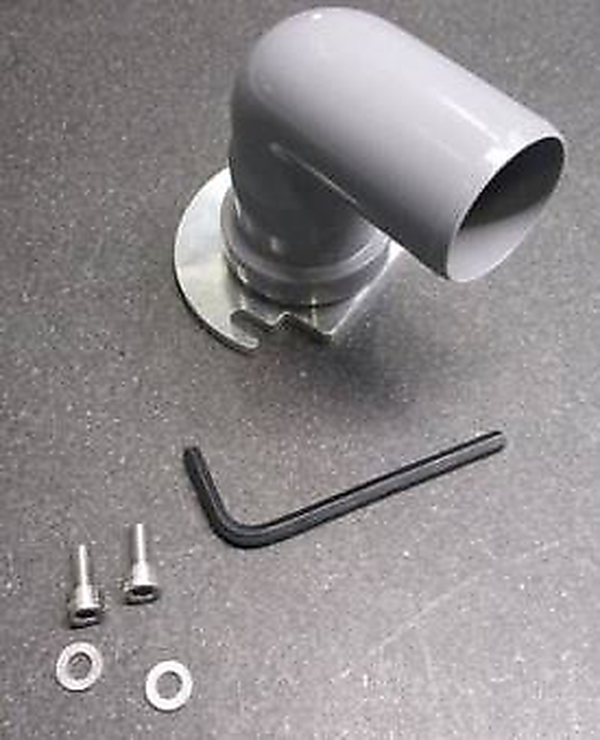

22.481.0025분진 흡입 용 커넥터, DM 200 용
