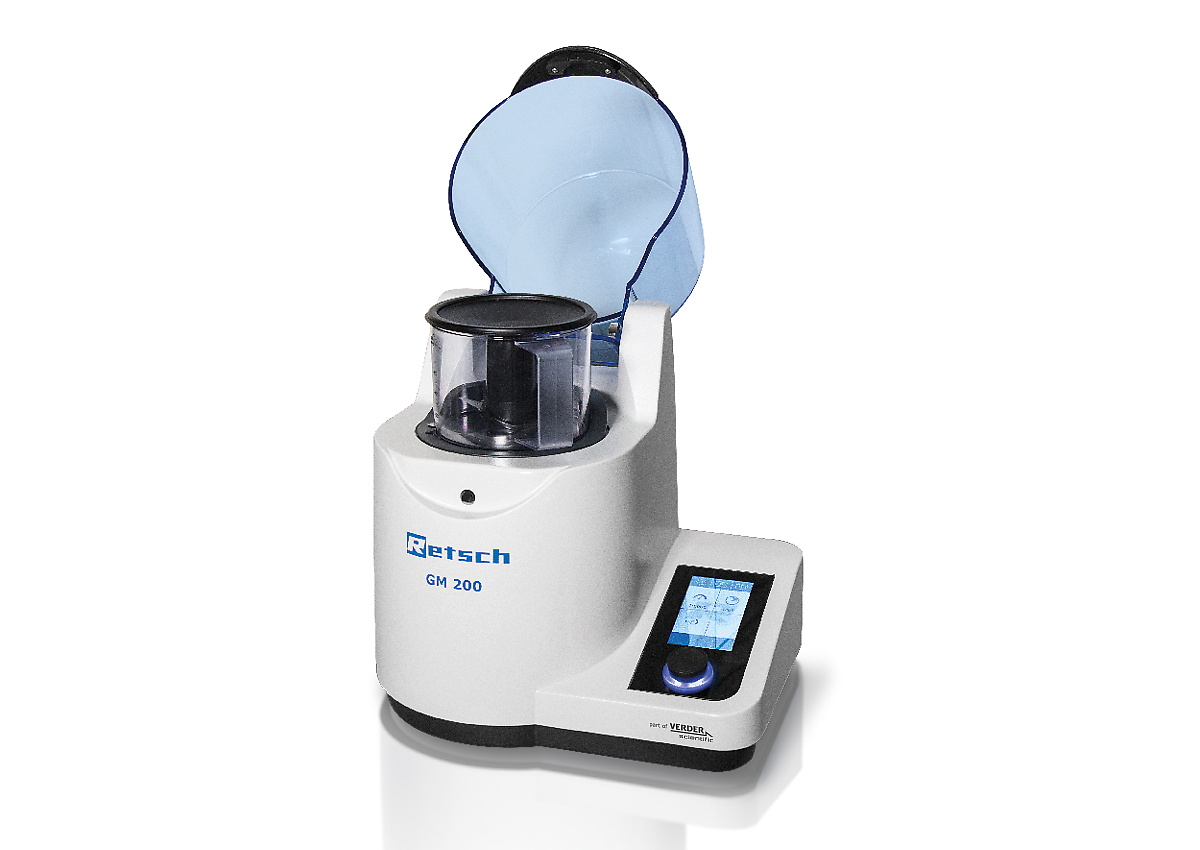

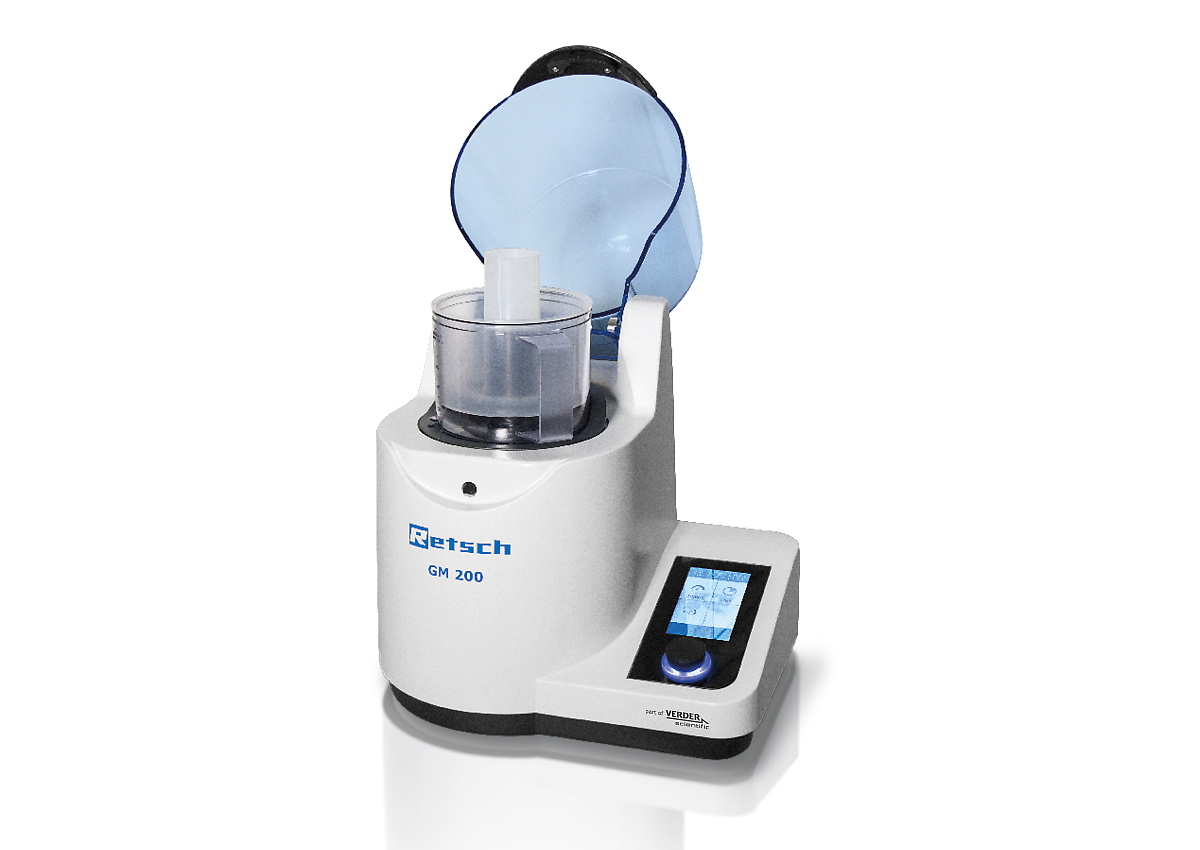

Knife Mill GRINDOMIX GM 200
The new knife mill GRINDOMIX GM 200 is the ideal instrument for grinding and homogenizing foods and feeds. It allows to process sample volumes up to 0.7 liters quickly and reproducibly.
With two sharp, robust blades and a powerful motor, it is ideal for homogenizing substances with a high water, oil or fat content as well as for grinding dry, soft and medium-hard products. A wide selection of lids and containers allows for adaptation of the mill to individual application requirements. The GRINDOMIX GM 200 meets and exceeds all special laboratory and analytical requirements and is a professional device superior to any commercial household mixer.
응용
견과류, 물고기, 냉동제품, 동물 사료, 햄, 치즈, 소시지, 식물, 식물 재료, 씨앗 기름, 약픔 재료, 양념, 육류, candy, cereal bars, cereals, coated tablets, cocoa nibs, dietary supplements, dried and fresh fruit, lettuce, soap, ...
장점
- efficient size reduction of up to 700 ml feed quantity due to a powerful 900 W motor
- pre- and fine-grinding in one mill: cutting action in regular mode, grinding by impact in reverse mode, pre-grinding in interval mode
- all parts which come into contact with the sample material are autoclavable
- perfect adaptation to application requirements by variable speed from 2.000 to 10.000 min-1 with an increment of 100 min-1
- optional gravitation lid for automatic reduction of the grinding chamber volume
- 3 SOPs can be stored

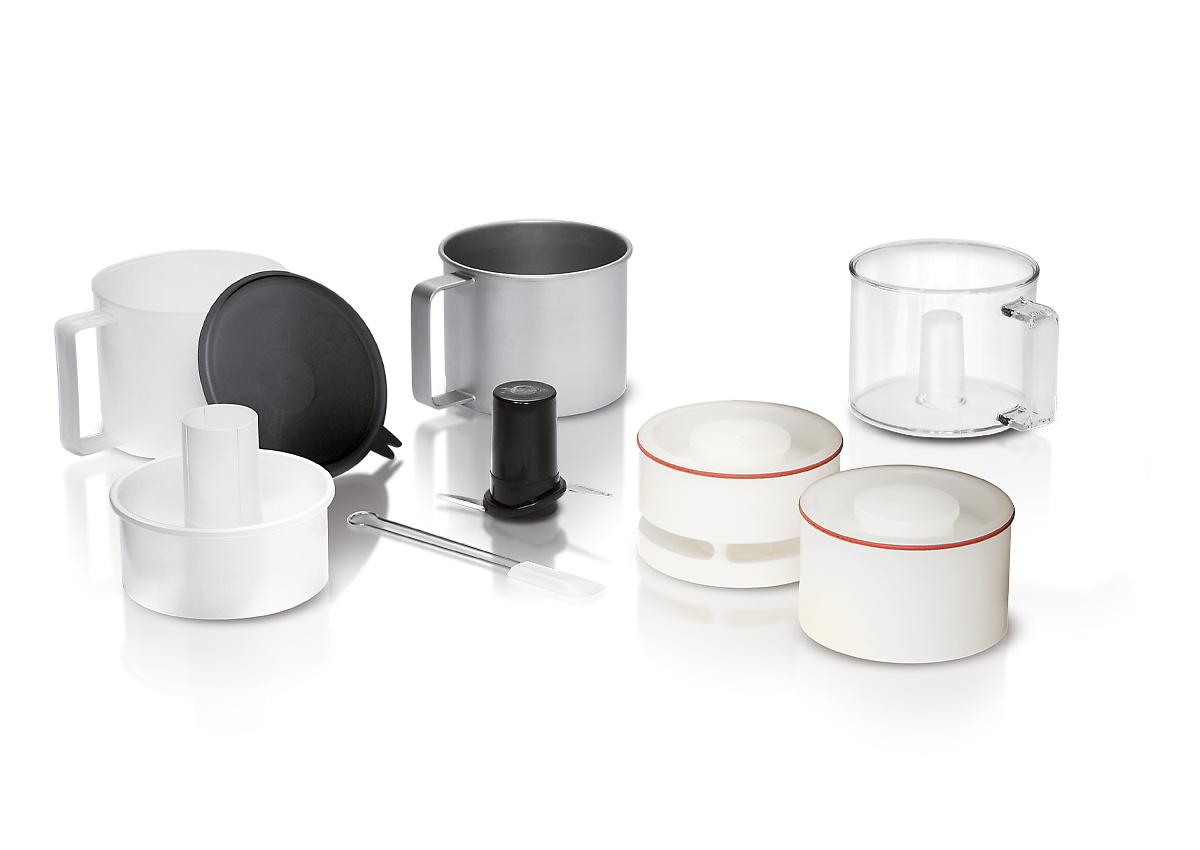

- grinding jar in plastic, stainless steel and glass available
특징
| 응용분야 | 크기 감소, 균질화와 혼합 |
| 응용분야 | 농산물, 생물학, 식품, 의학/제약 |
| 투입 시료 | 소프트, 약간 단단한 것, 탄성의, 수분/오일/지방 함유, 건조물, 섬유질 |
| 크기 축소 원리 | 분쇄 |
| 최대 투입 크기* | 40 mm |
| 최종 분쇄 후 미세함* | < 300 µm |
| 투입시료 용량 | with standard lid 700 ml with reduction lid 300 ml with gravity lid 300 - 600 ml |
| 분쇄조 용량 | with standard lid 1000 ml with reduction lid 500 ml with gravity lid 400 - 800 ml |
| 50 Hz (60 Hz)에서 속도 | digital, 2.000 - 10.000 min-1 |
| 분쇄조의 재질 | blade: stainless steel / titanium fixation of blade: PVDF container: autoclavable plastic / plastic PP / stainless steel / glass |
| 분쇄 시간 설정 | 디지털, 1 s - 3 min |
| 순차 운전 | yes |
| Storable SOPs | 3 |
| 동력 | 특성화된 모터 |
| 동력 | ~ 900 W |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| 안전 보호 코드 | grinding chamber and keypad IP 42 |
| 소비 전력 | ~ 900 W |
| 폭 x 높이 x 깊이 닫힘 | 350 x 275 x 392 mm (opened: 350 x 410 x 553) |
| 중량 | ~ 10 kg |
| Standards | CE |
작동 원리

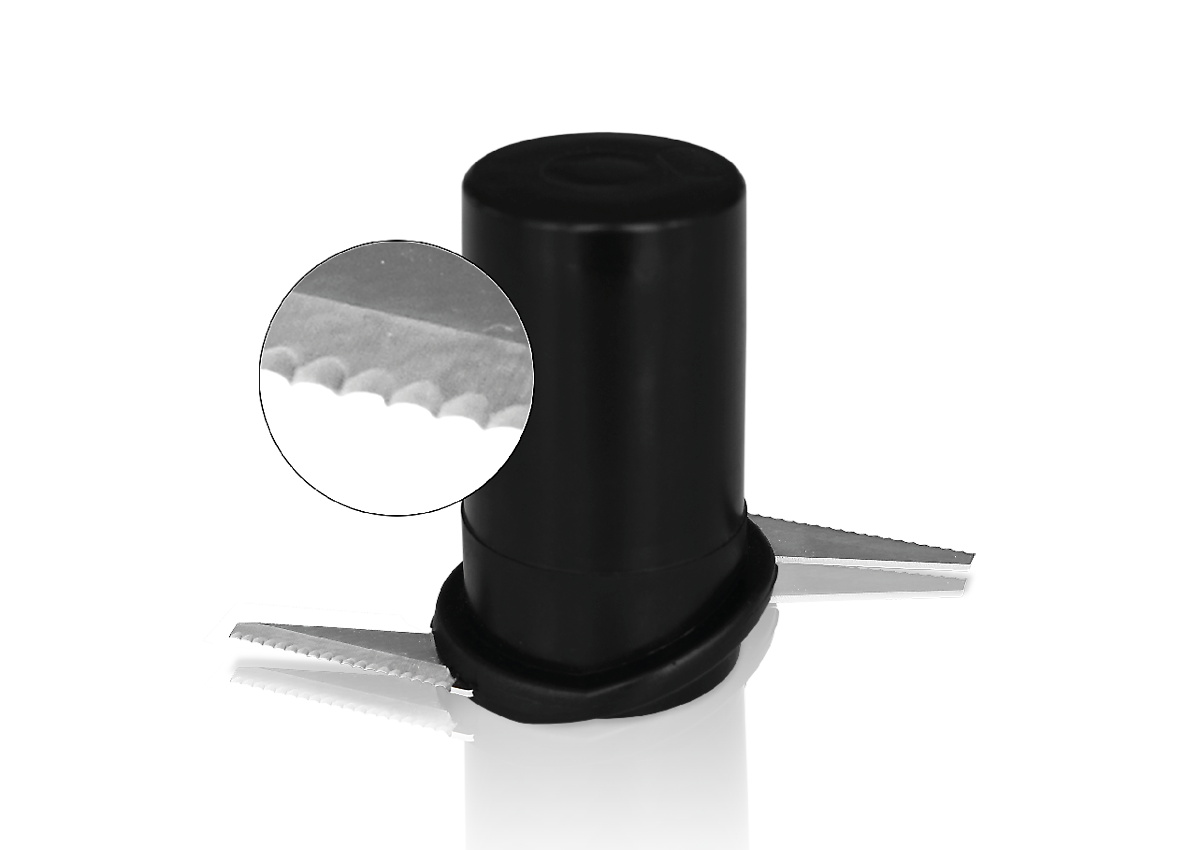

Two sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding).
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
기술적 변경 및 오차가 있을 수 있습니다
